Scheduled reports

Scheduled reports allow you to export your data on a regular basis. You can schedule daily, weekly, monthly or yearly recurrent reports.

Exports are generated on the server side, so you don't need to keep your browser open.

Creating a scheduled export

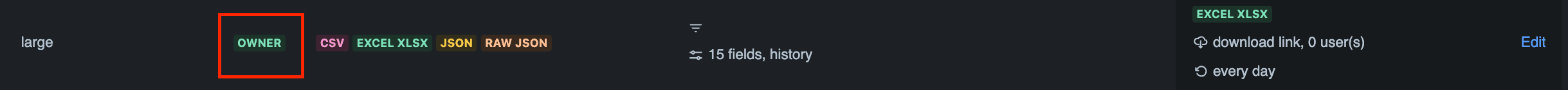

You can only create a schedule for the export configurations you own (Owner label).

To schedule a publicly visible export, create its copy (Save as... from the export configuration page) and add schedule for the copy.

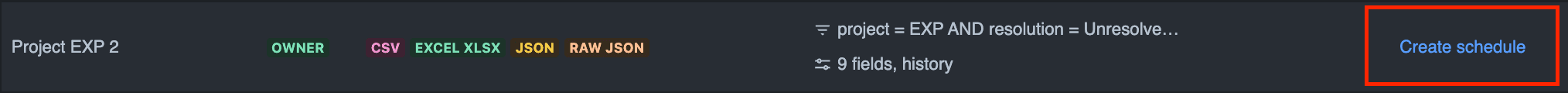

The scheduling modal is accessible either from the export configuration page or from the Dashboard.

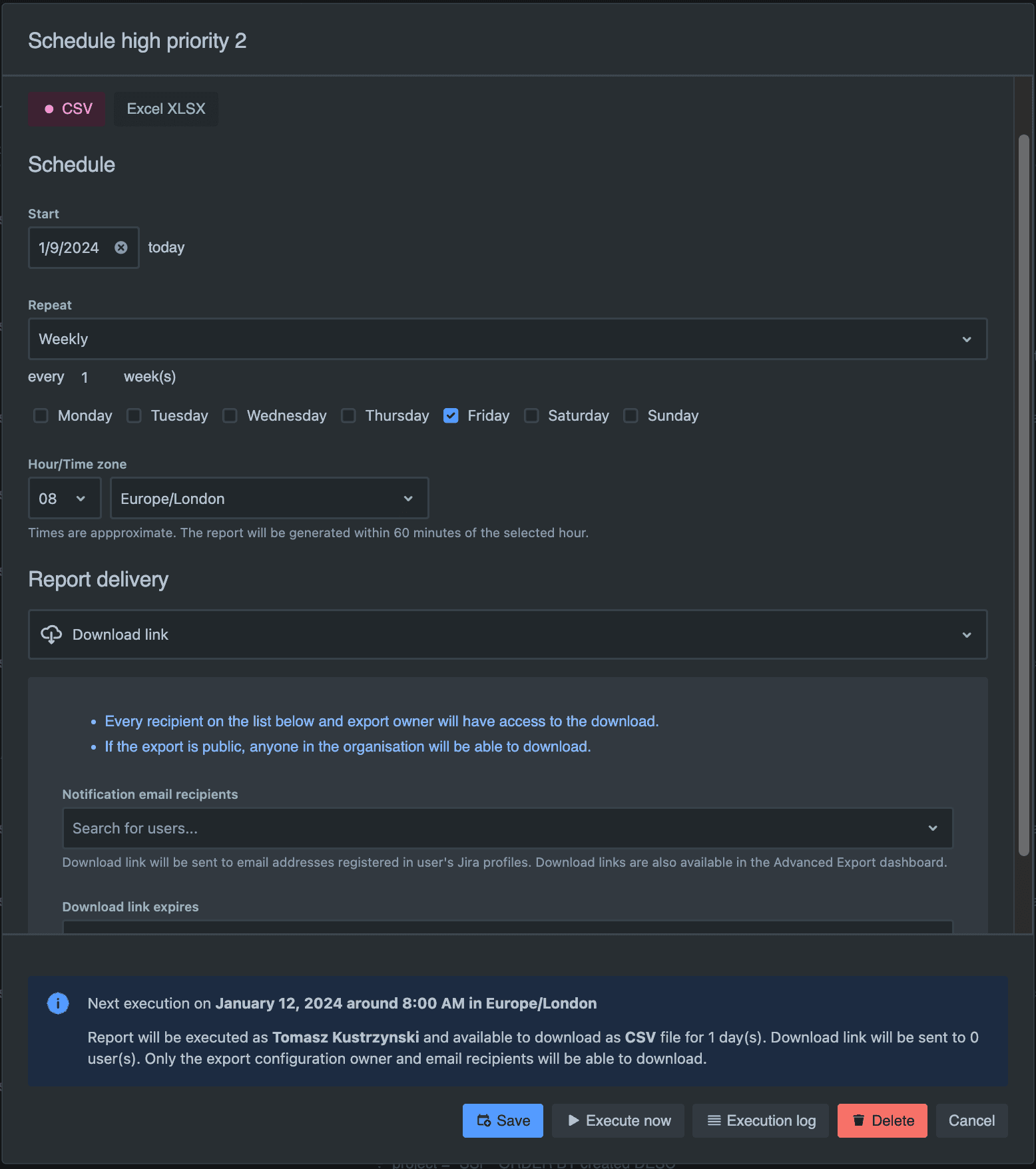

Create/edit schedule dialog:

Status of all the scheduled reports is visible from the Dashboard.

Options

• Format: specify output format (CSV, XLSX, JSON)
• Start: specify start date (useful when you want to export for example every 2nd or 3rd day)
• Repeat: set a recurring report daily, weekly (on specificed week days), monthly (on the nth day of the month) etc.
• Hour/Time zone: specify an hour when export should happen in specific time zone
• Report delivery: specify how you want to receive the report (email attachment, download link, SFTP server upload, webhook POST request)

Pausing scheduled report

You can manuall pause the report by using the toggle in the upper right of the modal.

We'll also pause the report automatically after 5 or more failures in a row.

To reactivate the reports, go to Schedule dialog and toggle the "Paused" switch in the upper right corner.

Execution permissions

By default scheduled reports are generated with the permissions of the user who created the export configuration. This means that the user must have access to the data they want to export.

It is possible to change this and generate with permissions using Jira role atlassian-addons-project-access. To check what project permissions this role has, go to Jira settings -> Issues -> Permission schemes -> [Permissions for chosen permission scheme]. It should have at least Browse Projects permission for the export to succeed.

To enable report generation as an add-on:

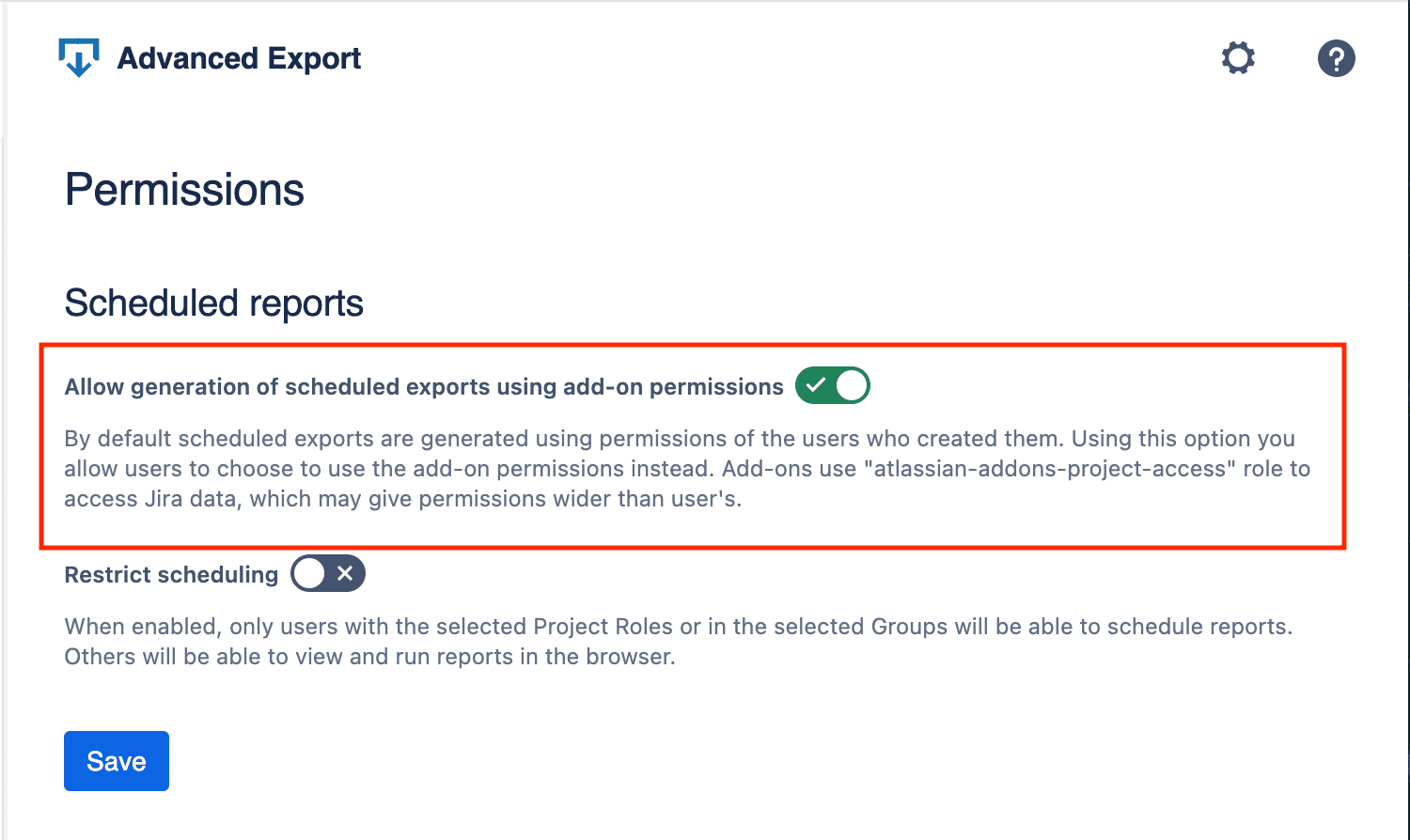

1. Go to Apps Settings -> Advanced Export / Permissions, and enable Allow generation of scheduled exports using add-on permissions

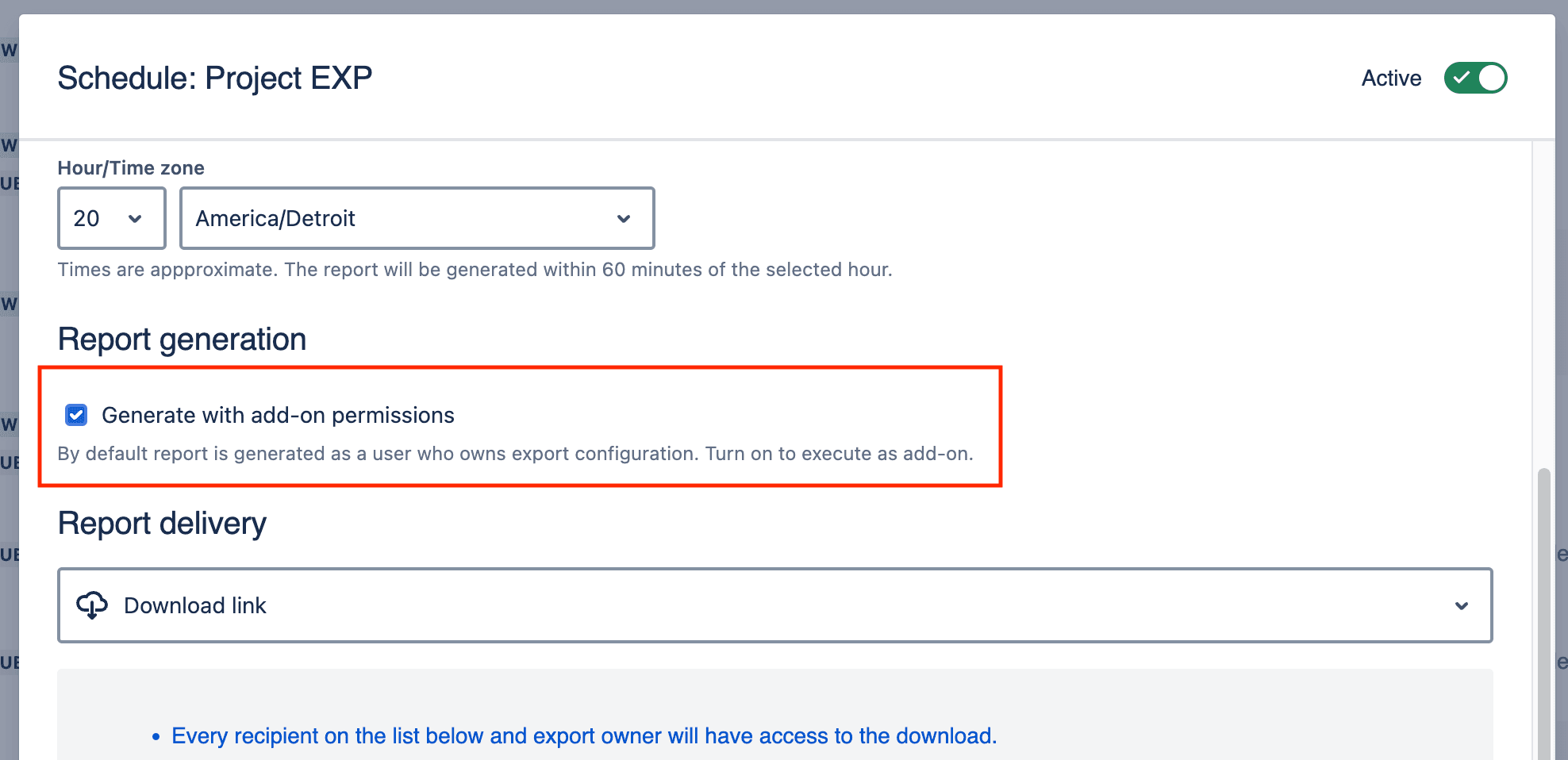

2. In a selected Schedule, enable Report generation / Generate with add-on permissions

Receiving a scheduled export

You can receive the report in several ways:

• email attachment
• download link
• SFTP server upload
• webook POST request
• via API (see API documentation)

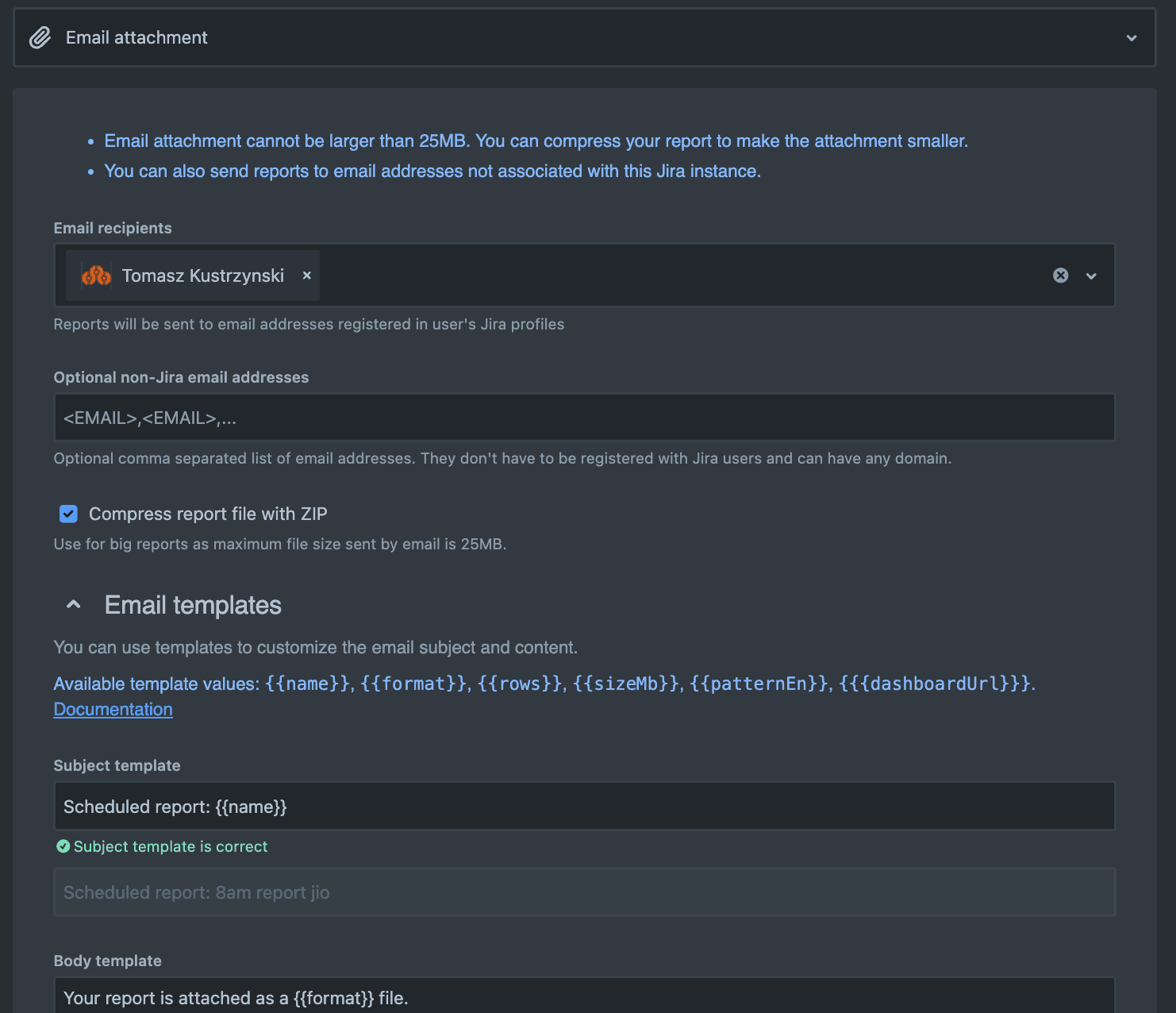

Email attachment

Options

• Email recipients: add any Jira users as recipients. Emails will be sent to their registered email addresses
• Optional non-Jira email addresses: add more recipients by specifying any email addresses (separated by comma)
• Compress report: optionally compress the file attached to an email (as a ZIP file, typically 10 x smaller)
• Email subject and body template: you can specify yuor own text for the subject and body of the emails being sent. See documentation of the syntax for templates

The scheduled reports are sent to the email addresses from Jira user profiles.

There's 25MB limit to the size of report file. If your reports tend to be big, consider using Compress report file with ZIP option which can get the file size around 10 x smaller.

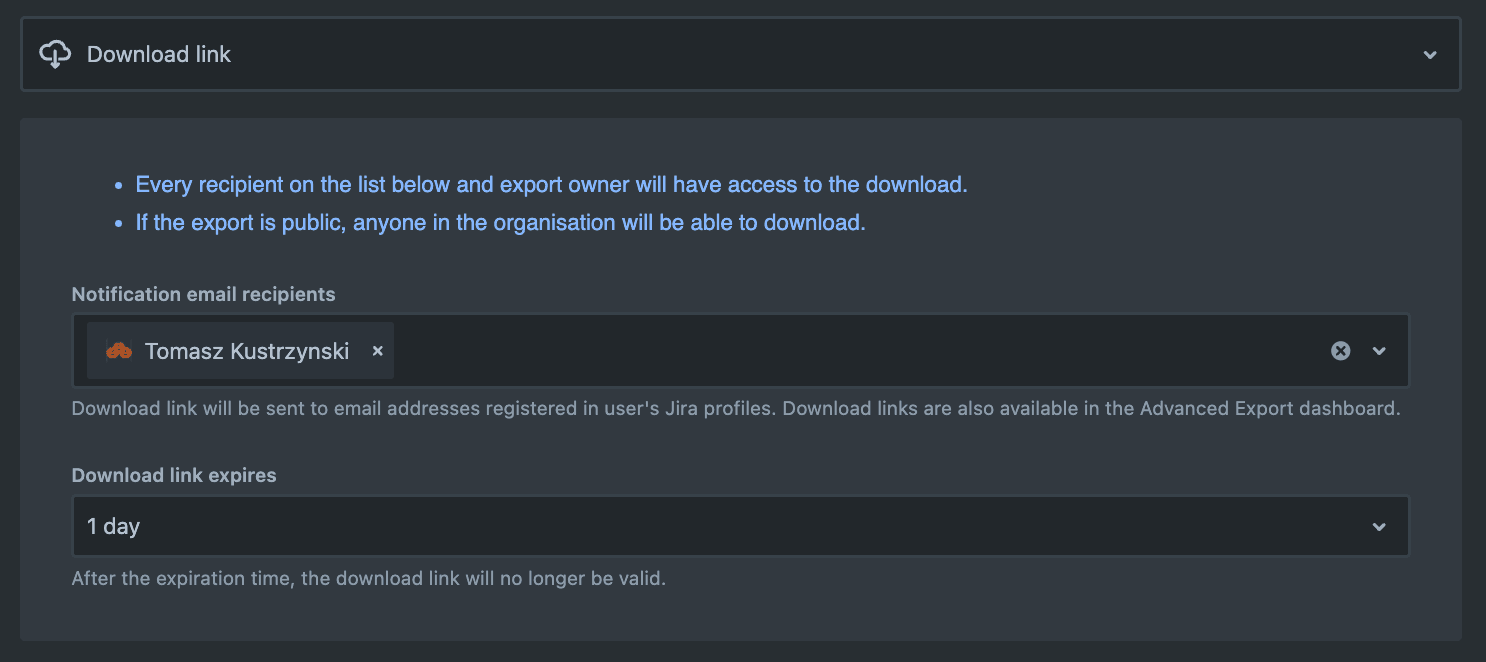

Download link

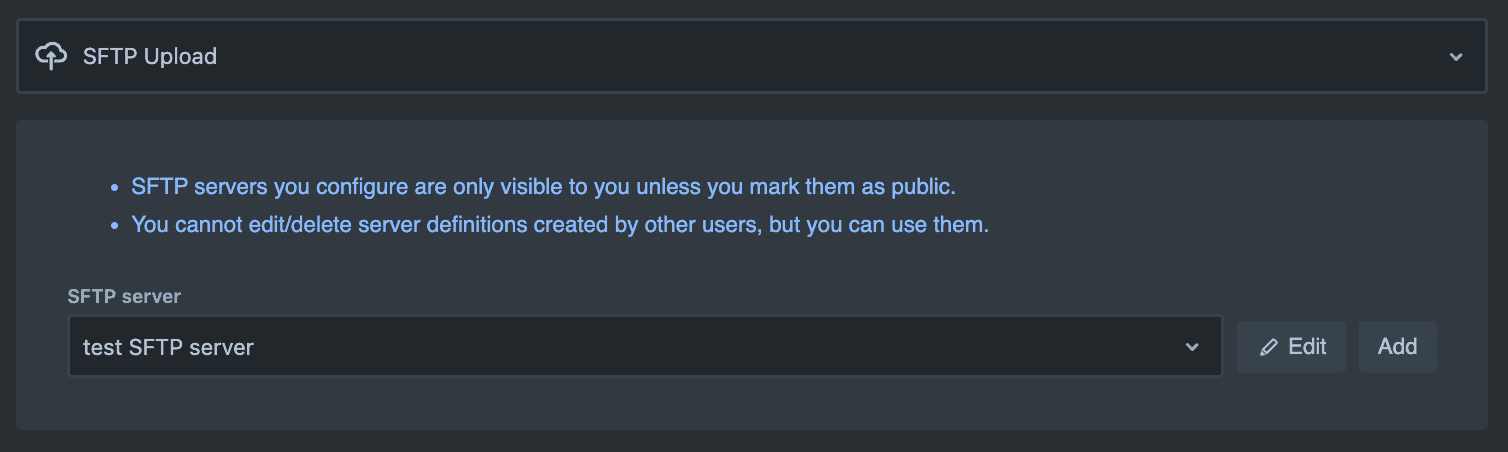

SFTP server upload

Webhook

You can also receive the scheduled reports via webhook. The webhook is sent to the URL you specify in the Schedule settings.

Webhook will be called with POST method, with the following headers:

• user-agent: Advanced Export/3.0.6
• transfer-encoding: chunked
• content-disposition: attachment; filename="FILENAME" - absent for JSON report format
• content-type: "MIME_TYPE or application/json for JSON"
• x-download-schedule-id: "SCHEDULE_ID"
• x-download-schedule-execution-id: "SCHEDULE_EXECUTION_ID"

Your endpoint has to accept streamed content ("transfer-encoding: chunked").

Webhook URL can use following values:

• {{exportConfigName}}
• {{exportConfigId}}
• {{reportDate}}
• {{jql}}
• {{format}}
• {{rows}}
• {{sizeMb}}

Any part of the URL containing these values will be substituted. For example:

https://example.com/report/{{exportConfigId}}?date={{reportDate}}&format={{format}}&rows={{rows}}&size={{sizeMb}}

may result in a call to:

https://example.com/report/1234-5678-9012?date=2022-03-14T08:42:00.000Z&format=CSV&rows=42&size=1.25

Example webhook endpoint implementation and test

Here's an example of the NodeJS Express based server receiving the content of the report and saving it as a file. Note the name of the file is taken from the content-disposition header.

There's no authorisation implemented below, however you can for example supply your custom header (e.g. Authorization: Basic XXXXXXXX) to verify webhook is being called from the Advacned Export application.

import express from "express";
import fs from "fs";

const app = express();
app.use(express.json());

const UPLOAD_DIR = "./uploads";

app.post("/upload", (req, res) => {
  const contentDisposition = req.headers["content-disposition"];
  const contentType = req.headers["content-type"];

  if (contentType === "application/json") {
    const body = req.body;

    // process JSON data...
    console.log(body.columns);
    console.log(body.rows);

    res.sendStatus(200);
  } else if (contentDisposition) {
    // process file attachement
    let filename = "file.dat";

    const filenameRegex = /filename[^;=\n]*=((['"]).*?\2|[^;\n]*)/;
    let matches = filenameRegex.exec(contentDisposition);
    if (matches != null && matches[1]) {
      filename = matches[1].replace(/['"]/g, "");
    }

    const writeStream = fs.createWriteStream(`${UPLOAD_DIR}/${filename}`);

    req.pipe(writeStream);

    writeStream.on("finish", () => {
      console.log(`Received file ${filename}, ${contentType}`);
      res.sendStatus(200);
    });

    writeStream.on("error", (err) => {
      console.error(`Error writing file: ${err.message}`);
      res.sendStatus(500);
    });
  }
});

app.listen(3002, () => {
  console.log("Server listening on port 3002");
});

This code and more example is available in the GitHub repository (opens in a new tab)

To test it:

• Save the above code as server.js
• Run the server locally with node server.js
• Use ngrok (opens in a new tab) to expose it to the internet:

ngrok http 3002

• Use the ngrok (opens in a new tab) tunnel as the webhook URL in the schedule settings, e.g. https://xxxx-xxxx-xxxx.ngrok-free.app/upload (note the /upload path).

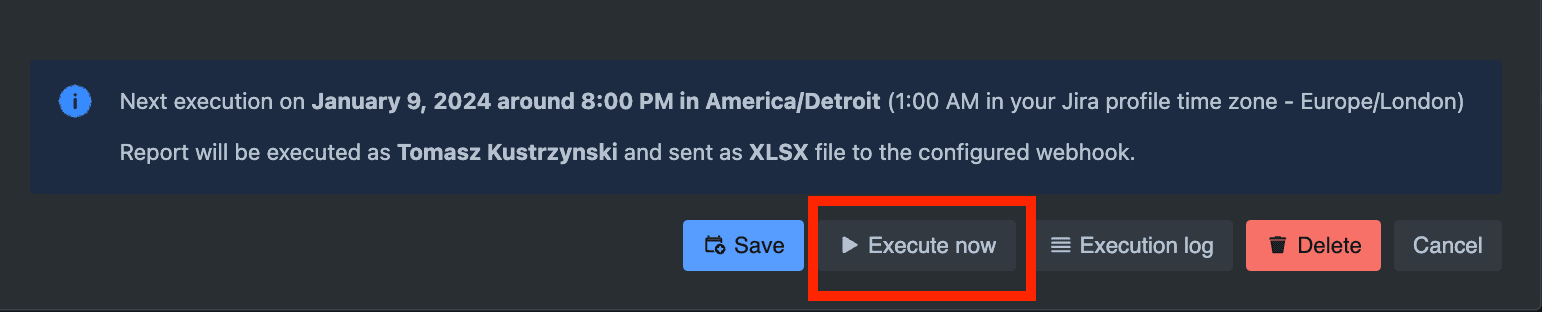

• You can then use "Execute now" button in the Schedule modal to execute and test the webhook.

API

See API documentation
